Thanks sincerely, Elk, but it’s still a total needle in a haystack for a guy like me. While not doing the work myself, I plan to have a tight plan for my modder and parts purchased. Several things were being done by several users at the same time, so it’s hard for those reasons. It’s so stale now, it’s a pain for people to revisit, and they don’t need to order parts, like I might.
Thanks, @jazznut. Perhaps folks like me bought up all those mouser parts, leaving me with unobtainium until May/June.
I did the same to distribute the heat across all 4 heatsinks.
The heat sinks here are thermally coupled and electrically insulated.
(However, after removing the Bridge-card this was in my case no longer necessary)
No sorry i was not clear.
In my case, I wanted to distribute the heat across all the heat sinks.
So by making the coupling I create a larger cooling surface.
(by bridge i meant the Bridge card that i no longer use)

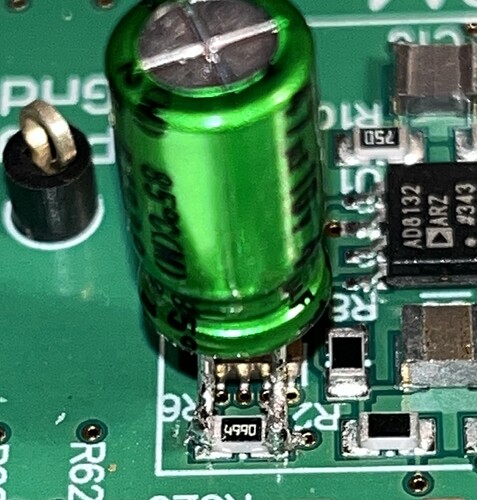

No, not necessarily SMD. On my first attempt I used Nichicon Muse Caps (UES1A470MEM1TD). These use the solder joints from R6 and can be installed without issues. Don‘t know if there are differences in SQ between the different cap types.
My buddy’s worried about the SMD work, but he’s got good skills. Anything worth mentioning/having for this specific board work, that would make his life easier? I know from the first set of mods on these boards, that higher than normal temps were used. I’ll buy him a new tool or whatever to make his life easier.
After all that was discussed here and what seems necessary to consider, I would not recommend letting someone do the work who’s not used to SMD soldering on such multilayer boards and who doesn’t exactly know himself what to consider.
If resistors are changed (which makes sense according to the discussions so far, although JK didn’t hear too much difference), then both, R5 and R6. Cap is only necessary over R6.
In case the new APS transformer changes anything of this, JK can clarify.
Actually the VOCM mod fixes an issue with the common mode power supplied to the opamps. It lowers the impedance as the opamps used were changed from the original which would have been fine in this circuit.
Was originally designed for AD8139 however an AD8132 was used.
