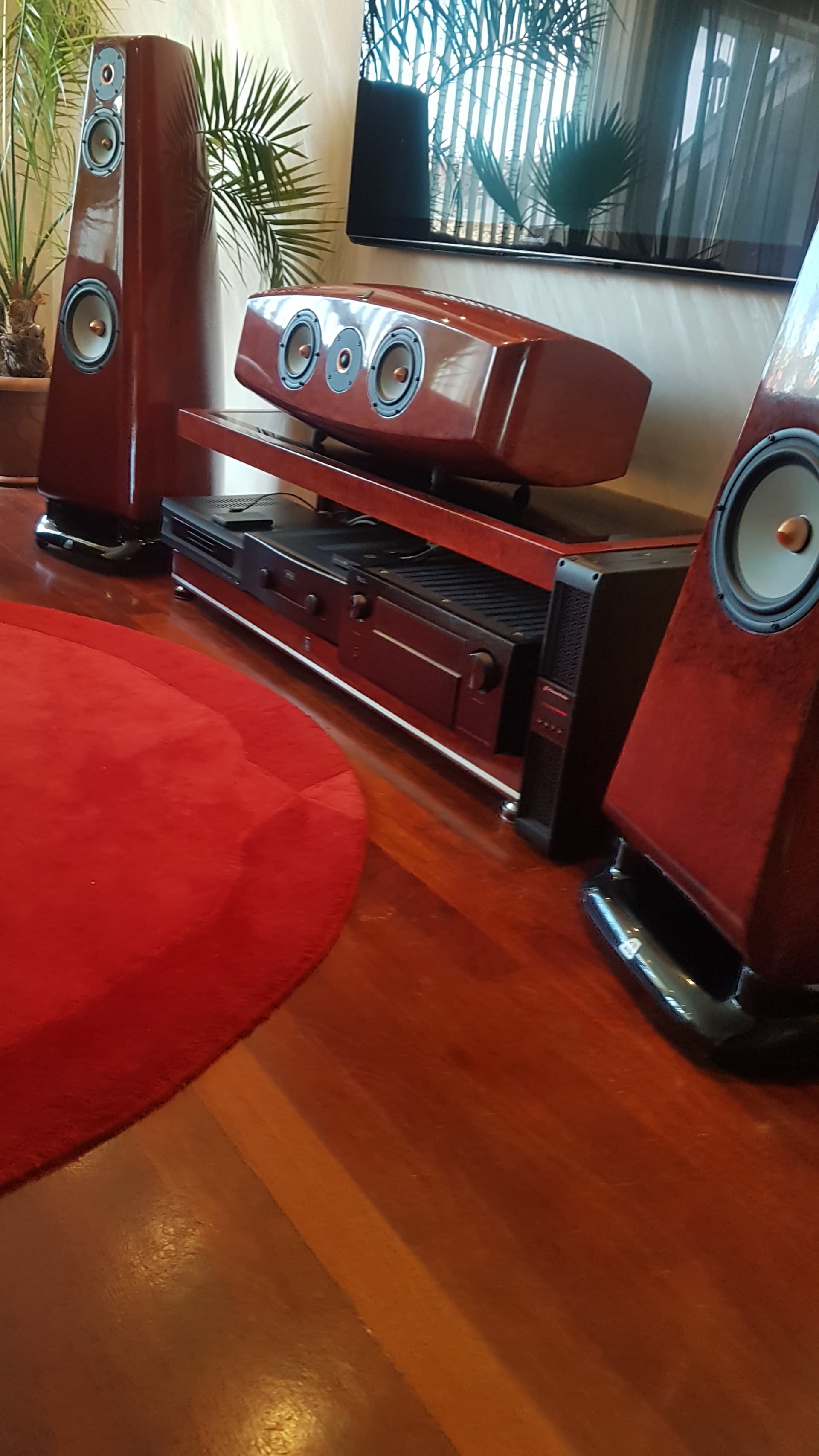

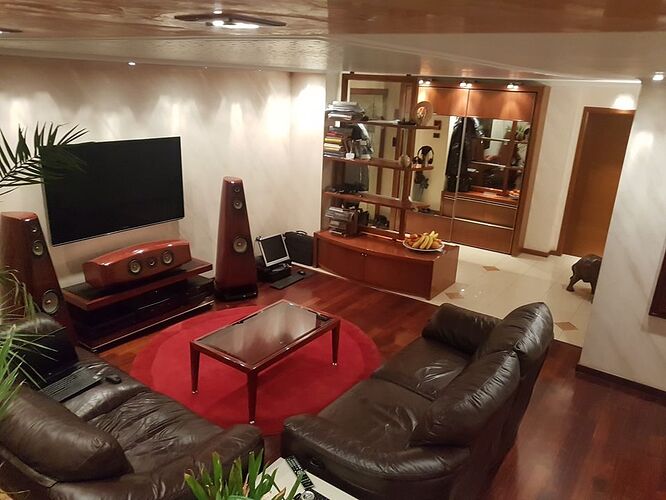

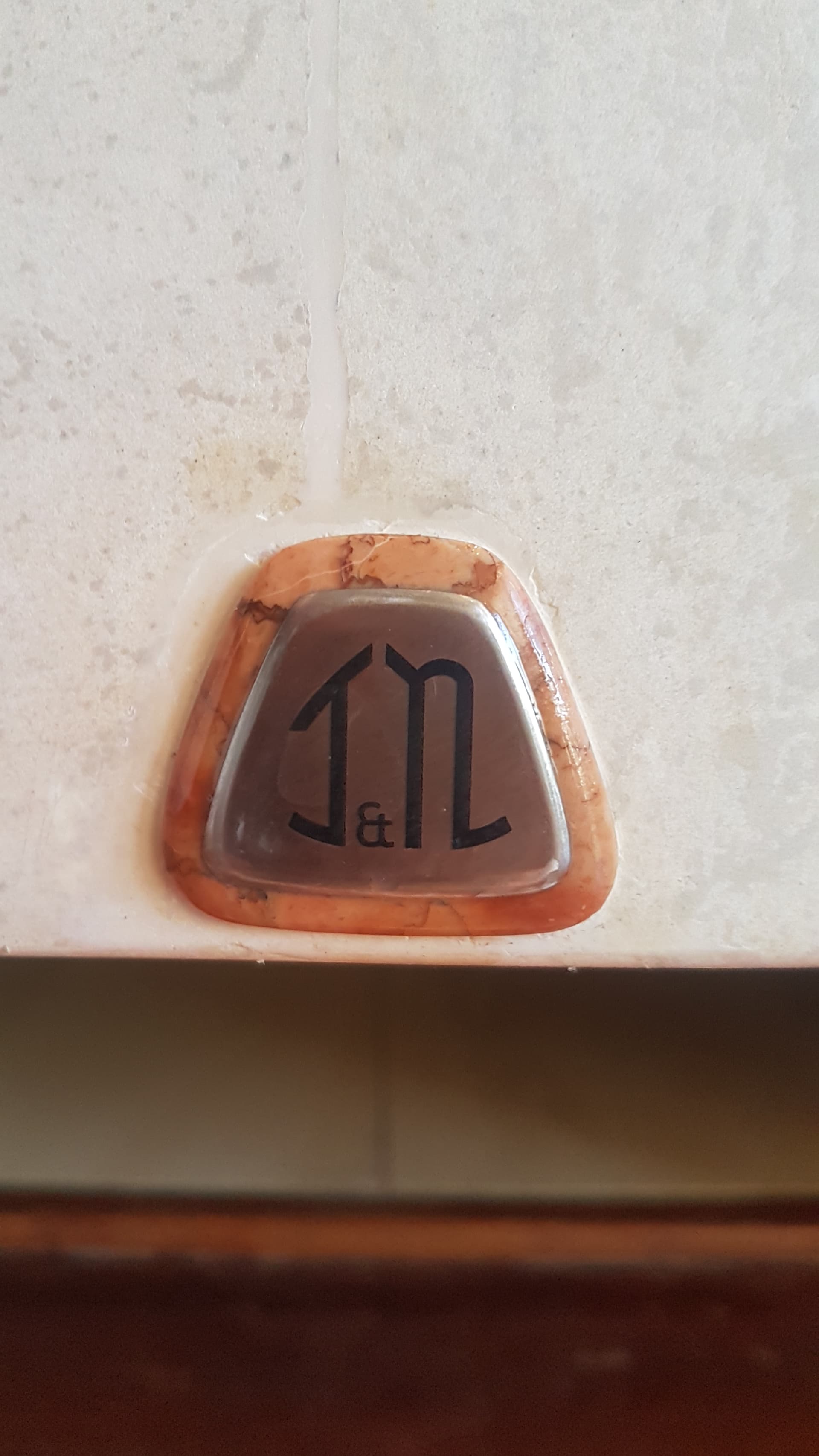

Actually, I repeated the logo theme because I wanted to bring you back to the initial project, I have an upgrade as options, an upgrade of my hi-fi system, and I will introduce yousome pictures of the room where I listen to music, everything in it is made by me, follows ;
Very beautiful and I am sure they also sound great!
It looks very smooth. Great job!
^ Thanks, Baldy!
The reason for purchasing UPS in my home is power supply problems specifically;
power outages, surges, power outages for about 1/5 to 3 hours, stability issues during thunderstorms.
I stopped at the German company " Schneider Electric", they have a presence on the Bulgarian market for more than 25 years, including with built production facilities .
Specifically the model “Power Walker” VFI 2000RT HID
With the launch of the UPS, the problems began;
Terrible noise from the fans above 64 dB. - thresher!
Annoying, irritating blue light on the LSD display!
Naturally I contacted the office in Germany asking the following question;
Do you have software for adjusting the speed of the fans and the LSD display, I received a negative answer, but the company claims that it is a flagship model - Fact!
In fact, I could have returned the product, but the machine has very good features - clean inverted sine wave, protection against surges and voltage drops remote control capability and 90 min power autonomy with working amplifier, receiver and TV.

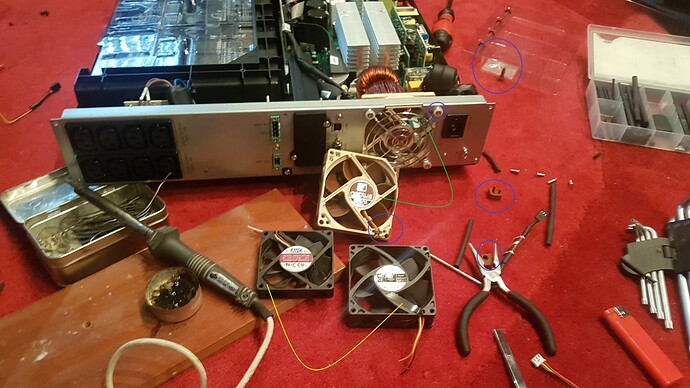

I decided to replace the fans, of course I lose the warranty at the moment, but it does not concern me.

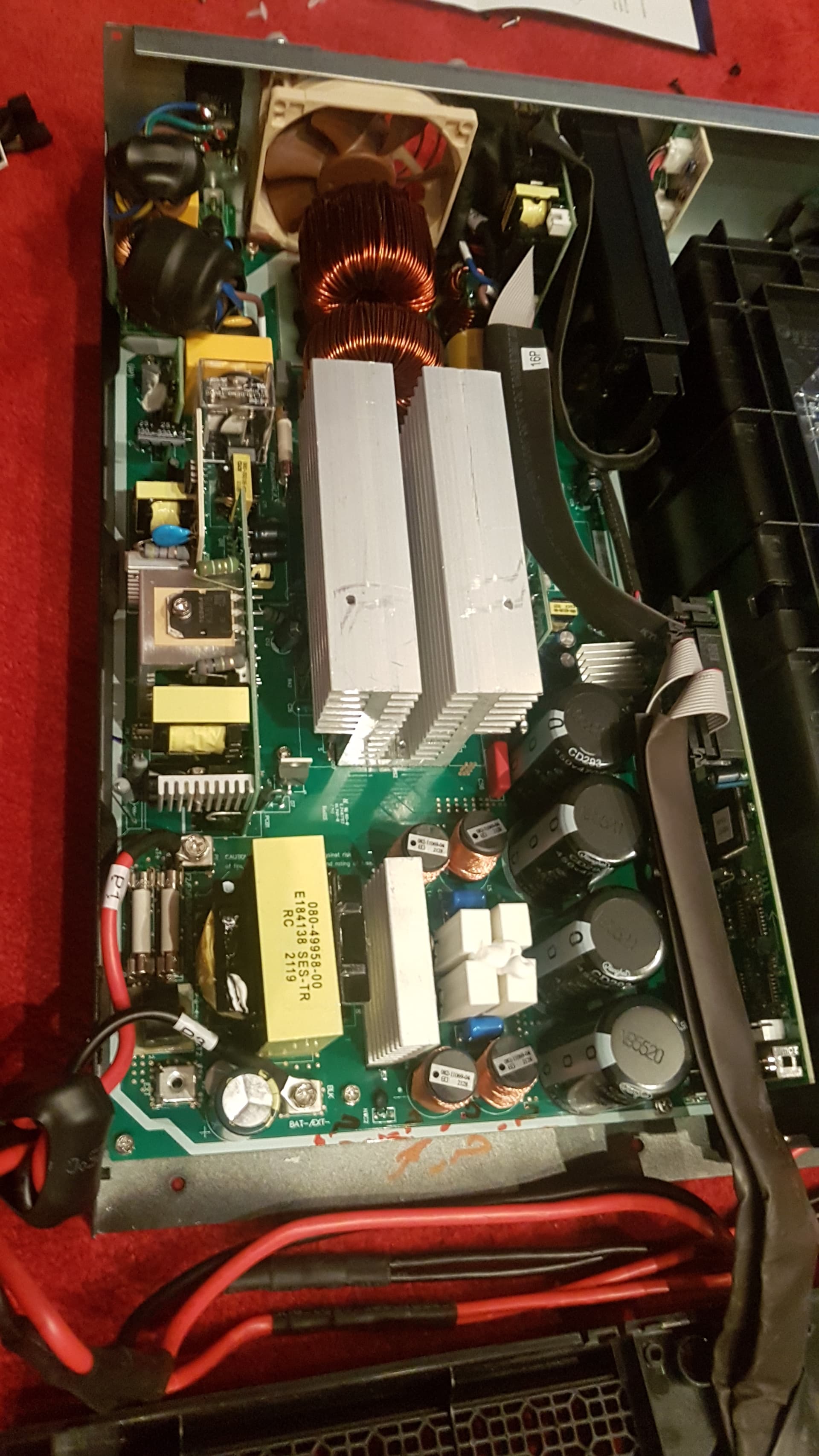

I opened the machine and found that such a construction could not be created by German engineers, indeed such elementary mistakes in the creation of the architecture of the motherboard and its cooling could be created by some mediocre mind!
The lack of enough space due to the motherboard has made the manufacturer install two different types of fans, the intake 70x70x15mm, and the exhaust 80x80x25mm!
The noise is already constructively embedded in the production of UPS, there can be no difference in the amount of incoming and outgoing air!
Naturally, no technical data on the fans themselves/ even on the official website in Taiwan/, the installation is directly on the case with screws, in one word - horror!

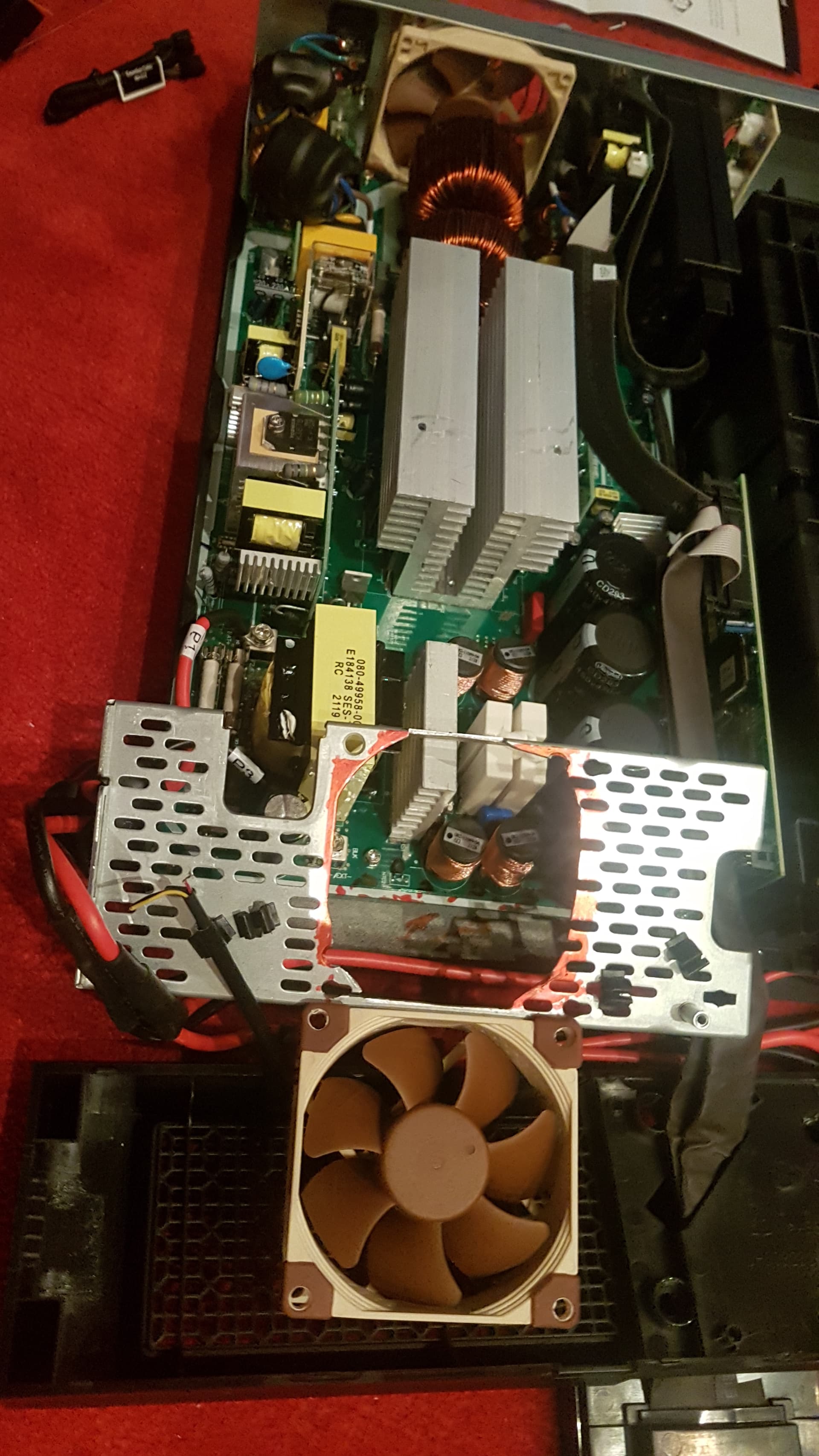

The photo shows / I have marked in red / the reason for installing a small and narrow fan, idiotic…

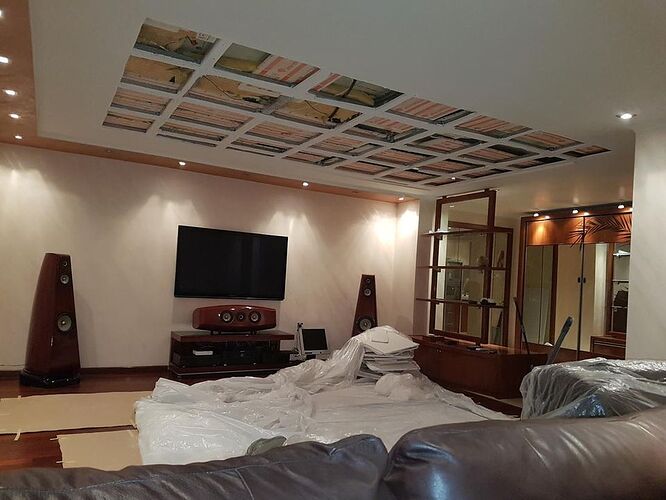

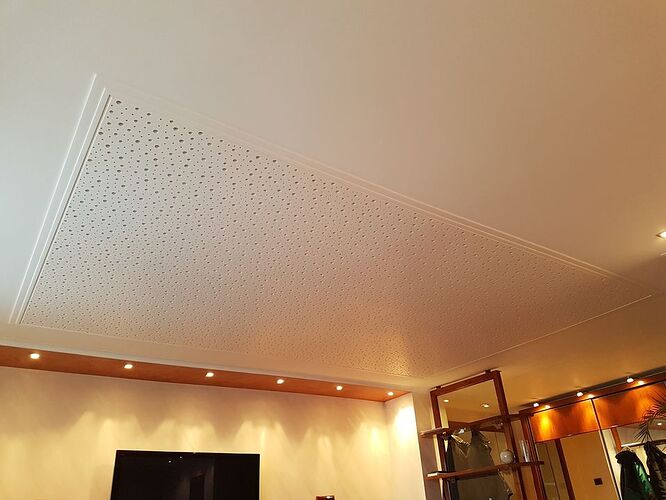

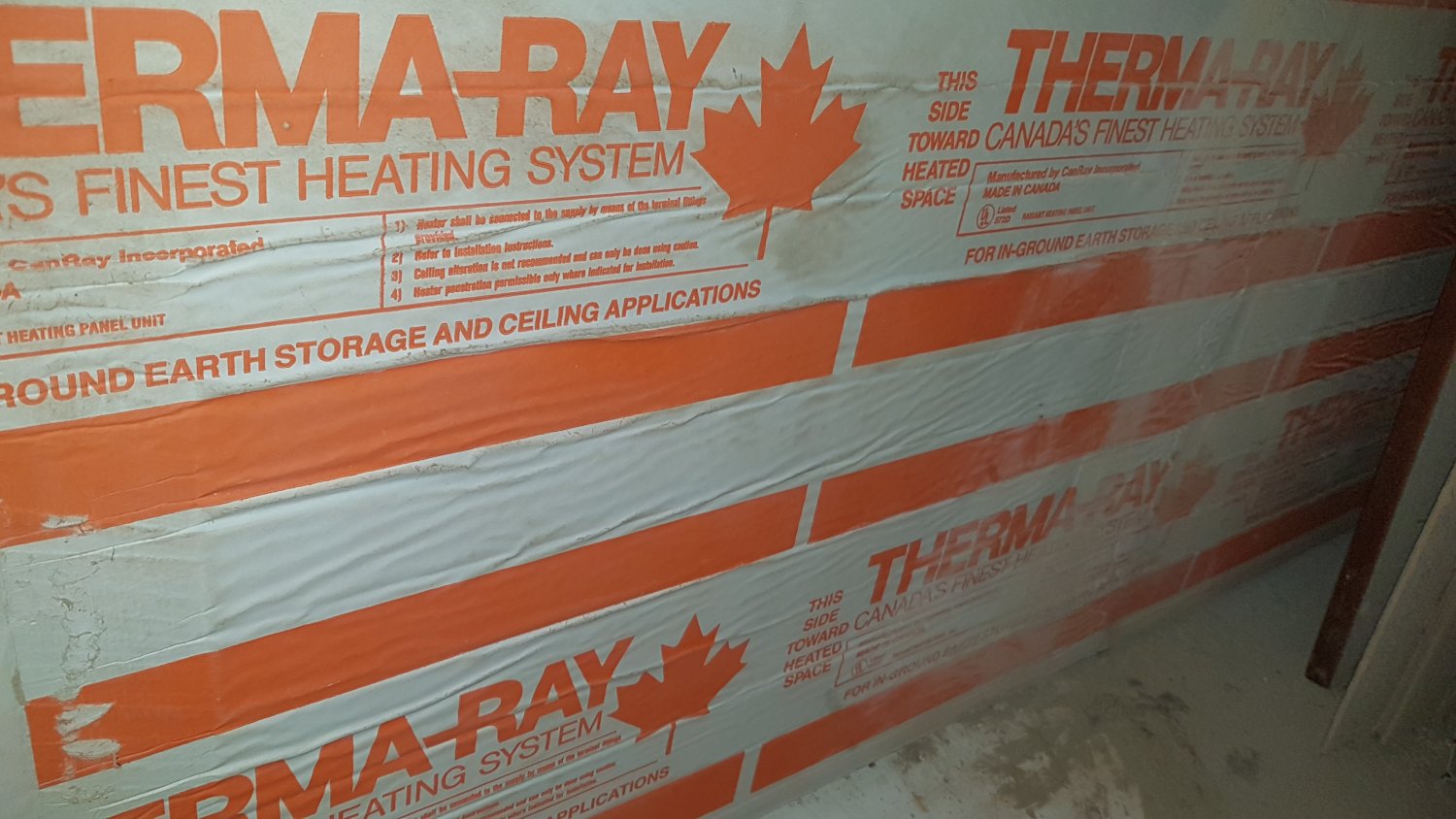

One of my solutions, a combination of heating and an acoustic absorber, the ceiling absorbs frequencies above 4000-5000 Hertz.
That is ultimate dedication to a cause.
